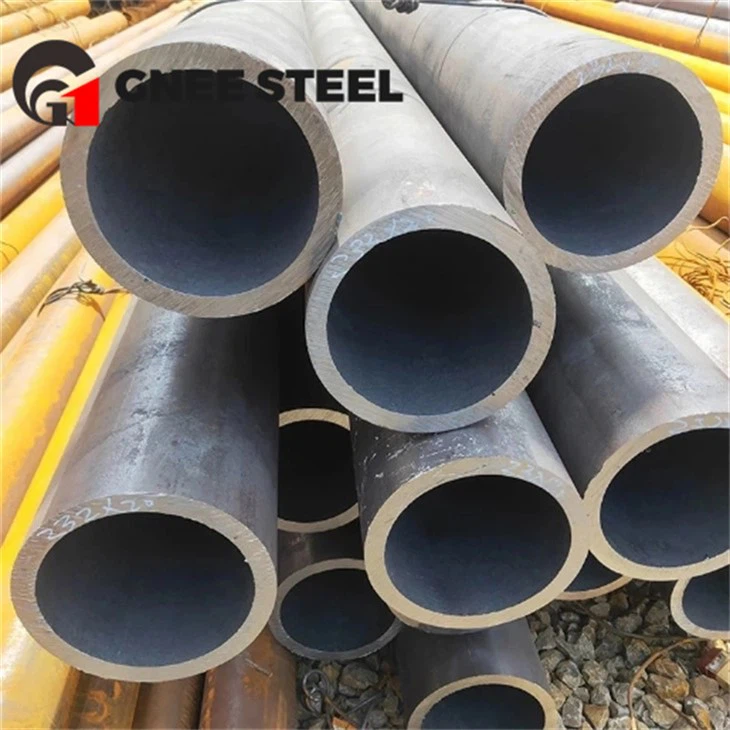

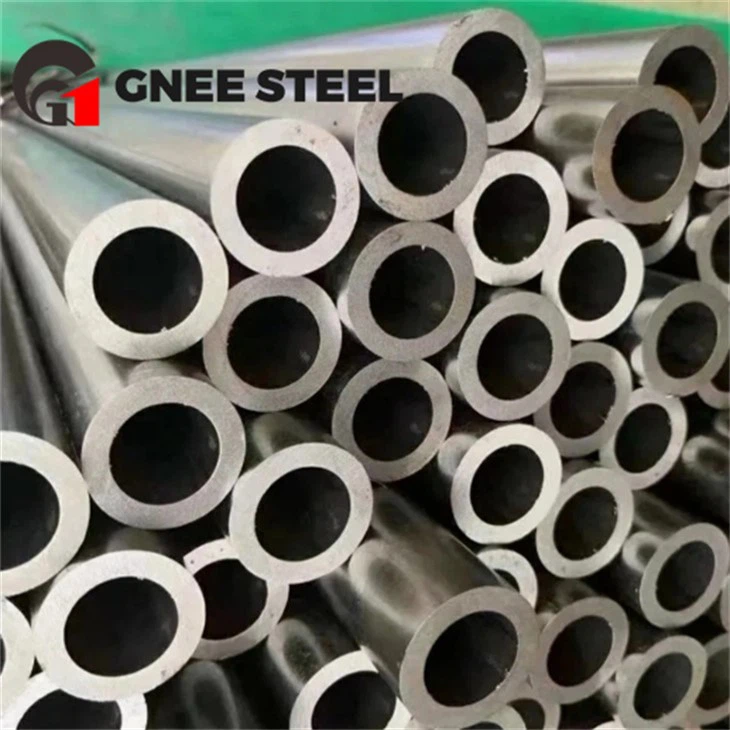

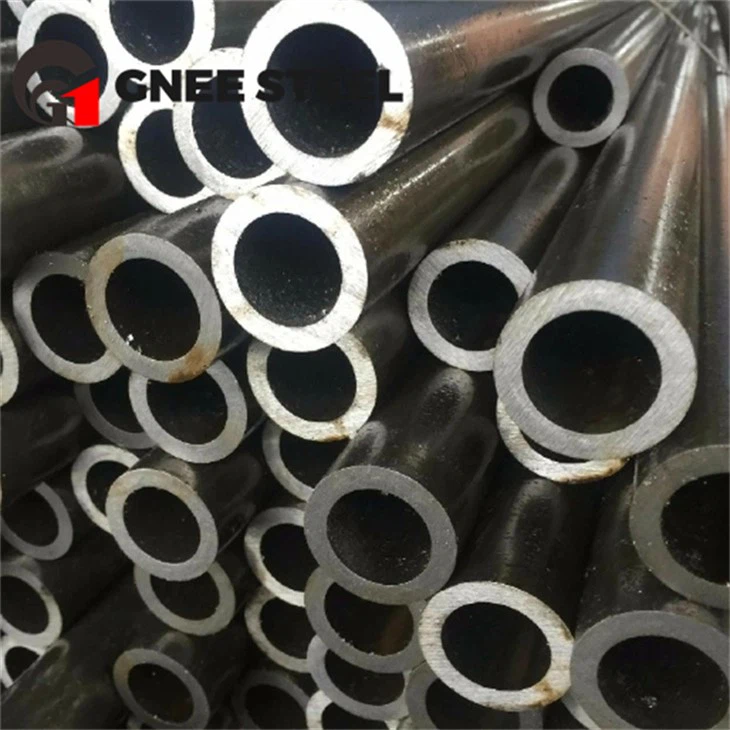

12Cr2MoG alloy seamless pipe is a high-pressure alloy pipe under GB/T5310 standard, mainly used for the heating surface of high-pressure boilers.
12Cr2MoG high-alloy structural pipe has good resistance to intergranular corrosion, excellent corrosion resistance and cold processing stamping performance. According to different use occasions, 12Cr2MoG high-pressure alloy pipe has different specifications and sizes. When purchasing, customers should choose appropriate specifications and sizes according to actual needs to ensure the normal operation of the pipeline system. At the same time, GNEE will also pay attention to checking the appearance quality of the pipe before the steel pipe leaves the factory, such as surface finish, wall thickness uniformity, etc.
Chemical composition of 12Cr2MoG seamless steel pipe:
Carbon: 0.08~0.15, Silicon: ≤0.50, Manganese: 0.40~0.70, Chromium: 2.0~2.5, Molybdenum: 0.90~1.20, Nickel ≤0.30, Copper: ≤0.20, Phosphorus: not more than 0.025, Sulfur: not more than 0.020
Mechanical properties:
Tensile strength 450~600MPa, yield strength ≥280, elongation after fracture: longitudinal ≥20, transverse ≥18, impact energy: longitudinal ≥40, transverse ≥27, Brinell hardness: no more than 163HBW, Vickers hardness no more than 170HV, Rockwell hardness no more than 85HRB.
Dimensional tolerance:
| Steel pipe types | Outer diameter(D) | Wall thickness(S) |
- |
- |
| cold drawn tube | Steel pipe outer diameter (mm) | Allowable deviation (mm) | Steel pipe wall thickness (mm) | Allowable deviation (mm) |
|
>30～50 |
±0.3 |
>3～20 |
±10% |
- |
Structural seamless pipe 12Cr2MoG
Advantages of choosing GNEE production line
GNEE has five finishing rolling lines and two hot rolling lines. In addition, we also use more advanced automatic width control system (AWC), automatic thickness control system (AGC), bending roll system, work roll groove roll system and other effective measures to ensure product quality. Annual output of 10 million tons, and strictly guarantee quality!
Gnee Customer visit
Gnee Factory environment
