ASME SA 213 T1 Chrome Molybdenum Pipe is a seamless ferritic alloy steel pipe for high temperature service.
GNEE is a stockist and supplier of SA213 T1 Seamless Alloy Pipe. Customized sizes and lengths are available for ASTM A213 T1 Alloy Steel Pipe as per the actual needs of the customers.
Alloy Steel T1 Pipe manufactured by GNEE is suitable for high temperature applications such as bending, flanging and similar forming operations, and fusion welding in power industry and petrochemical plants.
Products Data
Chemical Composition of SA213 T1 Alloy Steel Round Pipe
| Grade | UNS | C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % |
| T1 | K11597 | 0.10-0.20 | 0.30-0.61 | 0.025 max | 0.025 max | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 |
Mechanical Properties of ASTM A213 T1 Alloy Piping
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
| T1 | 415 min | 205 min | 30 min | 163 max |
Alloy Steel A213 T1 Tubing Outside Diameter and Tolerance
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
|---|---|---|---|---|
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Products display

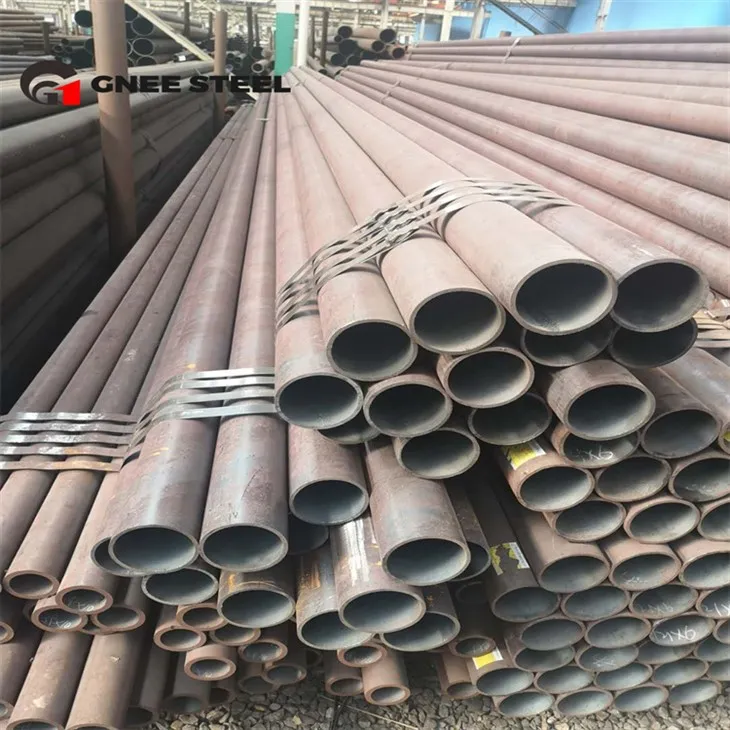

SA 213 T1 High Pressure Tube
Why Choose GNEE
GNEE has ISO9001-2000 quality management system and ISO14001 environmental protection system. Its products are exported to more than 60 countries and regions including Russia, Canada, India, Brazil, Southeast Asia, etc. GB, ASTM, JIS, DIN and other standards can be implemented.
If you would like to know more about our company or our products, please feel free to contact us. sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q: Do you have quality control system?
A: Yes, we have our own quality control laboratory.Third party testing servicesare also available.
Q: What services do you provide?
A: Customized service for each customer, please feel free to contact us!
Q.What is your lead time?
A. Regular stock is usually 10 days. Depends on the products.
