What is ASTM A214?
A214/A214M Standard Specification for Electric-Resistance-Welded Carbon Steel Heat-Exchanger and Condenser Tubes.
SA 214 What is the material of steel pipe?
SA 214 carbon steel pipe is a medium carbon steel material composed of carbon, manganese, phosphorus, sulfur and silicon. These pipes are often used in high-pressure applications such as steam boilers and pressure vessels, where their resistance to stress corrosion cracking and high toughness are important.
Contact us for price: sales@gneetube.com
A214 Boiler Tubes Chemical Composition
| Element | A/SA 214 |
| C | 0.18 max. |
| Mn | 0.27 - 0.63 |
| P | 0.035 max |
| S | 0.035 max |
A214 Carbon Steel Boiler Tubing Mechanical Properties
| Element | A/SA 214 |
| Tensile Strength KSI (MPa) | 47[325] |
| Yield Strength KSI (MPa) | 26[180] |
| Elongation min. % | ≥35% |
| Hardness | ≤72 HRB |

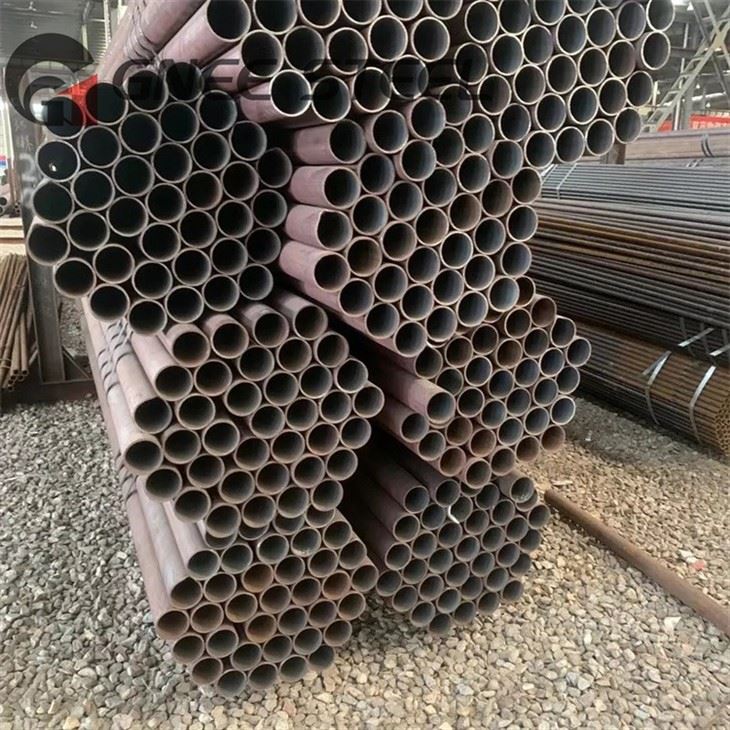

ASTM A214 Boiler Tube
This specification covers minimum wall thickness resistance welded carbon steel pipe for use in heat exchangers, condensers, and similar heat transfer equipment.
Pipe sizes normally supplied in accordance with this specification are 3 inches [76.2 mm] outside diameter inclusive. Pipes of other sizes may be supplied provided that such pipes comply with all other requirements of this specification.
Mechanical property requirements do not apply to pipe with an inside diameter less than 1/8 in. [3.2 mm] or a thickness less than 0.015 in. [0.4 mm].
The purchaser shall indicate the outside diameter and minimum wall thickness on the order. The inner diameter should not be specified.
GNEE Additional value-added services
UT(Ultrasonic examination)
AR(As Hot Rolled only)
TMCP (Thermal Mechanical Control Processing)
N(Normalized)
Gnee product certificate
Gnee Company Team
Gnee Group participated in the NECC exhibition
Gnee Customer visit
Gnee Factory environment
Gnee Packaging and shipping
FAQ
1.Q.Why choose Gnee?
A.With us, you will get the most competitive price, guaranteed quality, guaranteed delivery and after-sales service.
2.Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
3.Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
