API 5L Gr.B line pipe is a steel pipe made by submerged arc welding process, which has high compressive strength, low temperature toughness and good welding performance. These characteristics enable the steel pipe to safely and reliably transport fluids such as oil and natural gas under complex environments such as high pressure and low temperature.
The API 5L GR B welded steel pipe product specifications supplied by GNEE are 21.3mm~762mm in outer diameter and 2.0~140mm in wall thickness. The delivery state is hot rolled or heat treated.
Products Data
|
Product |
API 5L PSL2 and PSL1 LSAW Steel Pipe |
|
OD |
219 mm - 3000mm |
|
WT |
3 mm - 26 mm |
|
Length |
0.5 m - 20 m |
|
Standard |
API 5L, ASTM A106/A53, |
|
Material |
GR.B, X42, X46, X52, |
Chemical Composition API 5L Grade B LSAW Pipes
| GRADE | Chemical Composition | Mechanical Property | |||||||
| C (Max) | Mn (Max) | P (Max) | S (Max) | TENSILE ( Min ) | YIELD ( Min ) | ||||
| Psi X 1000 | Mpa | Psi X 1000 | Mpa | ||||||
| B | 0.26 | 1.20 | 0.030 | 0.030 | 60 | 414 | 35 | 241 | |
Coating of API 5L Grade B Carbon LSAW Pipes
| 3PE Coating | 3PP Coating | FBE Coating | Epoxy Coating | Special Painting |
Products display

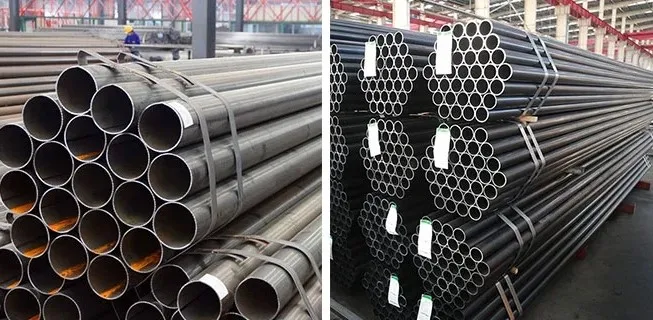

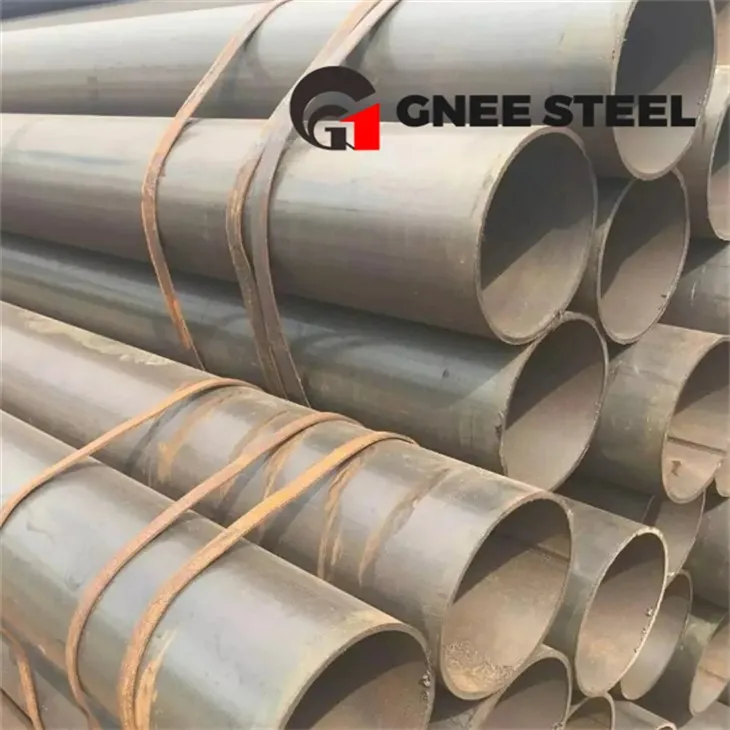

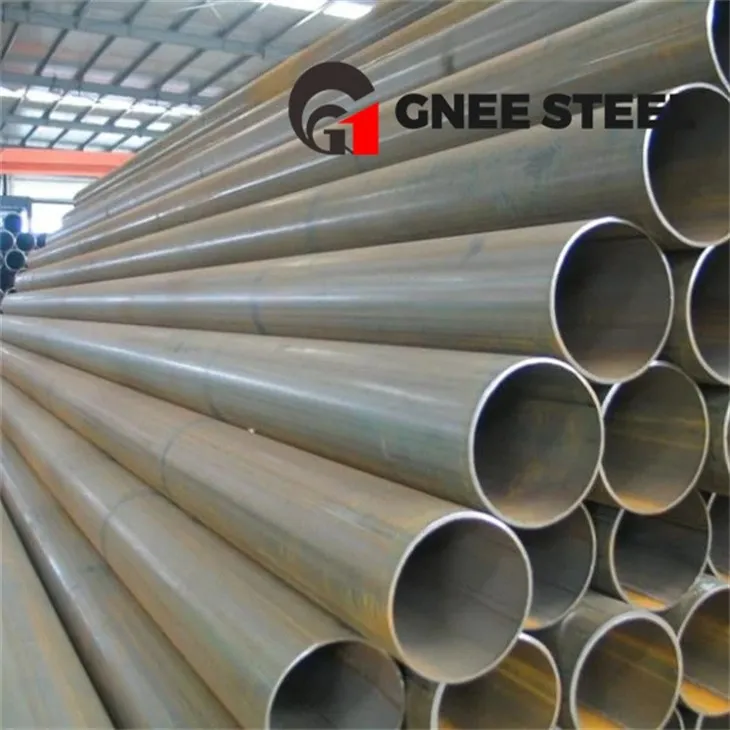

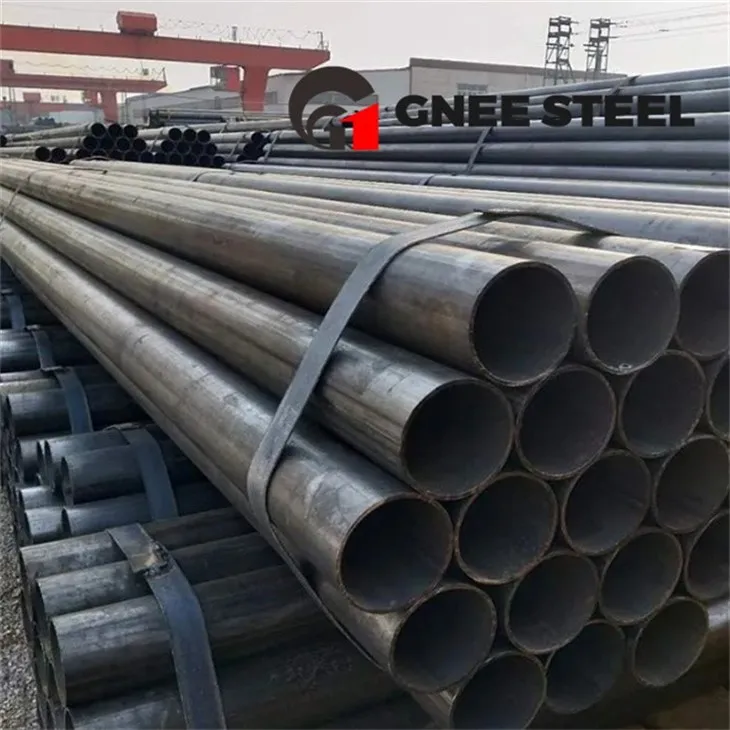

API 5L Gr.B LSAW Carbon Steel tube
Why Choose GNEE
GNEE has 12 production lines with an annual output of 50,000 tons. It has obtained the ISO9001 international quality management system certificate. The current warehouse inventory is more than 1,500 tons and more than 800 specifications. It is committed to strict quality control and thoughtful customer service.
Please feel free to contact us for more information! sales@gneetube.com
GNEE CUSTOMER VISIT
GNEE FACTORY ENVIRONMENT
GNEE PACKAGING AND SHIPPING
FAQ
Q.Accepted terms of delivery?
A.We accept FOB,CFR,CIF,ect.You can choose the one which is the most convenient or cost effective for you
Q .How to order ?
A.Please send us your purchase order by email or fax .Or you can ask us to send a proforma invoice for you order . We need to know the following information for your order.
Q .Do you provide samples? Is it free or extra?
A.Yes,we could offer free steel pipe sample for your evaluation.
