A333 GR6 GR8 LTCS Pipe Description
A333 GR6, GR8 seamless tubes belong to ASTM A333 series of seamless tubes for cryogenic use, specialised in cryogenic pressure vessels, heat exchangers and piping systems from -45℃ to -195℃.
Selection advice:
GR6 is economical and suitable for regular low temperature scenarios (e.g. chemical pipelines).
GR8 Higher nickel cost, but suitable for extreme low-temperature and high-strength requirements (e.g., LNG core equipment).
A333 GR6 GR8 Carbon Steel Pipe Specification
| Specification | ASTM A333/ASME SA333 |
| Type | Hot Rolled/Cold Drawn |
| Outer Diameter Size | 1/4"NB TO 30"NB(Nominal Bore Size) |
| Wall Thickness | schedule 20 To Schedule XXS(Heavier On Request) Up to 250 mm Thickness |
| Length | 5 To 7 Meters,09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
| Pipe Ends | Plain Ends/Beveled Ends/threaded Ends/Coupling |
| Surface Coating | Epoxy Coating/Colour Paint Coating/3LPE Coating. |
| Delivery Conditions | As Rolled. Normalizing Rolled, Thermomechanical Rolled /Formed, Normalizing Formed, Normalized and Tempered/Quenched and Tempered-BR/N/Q/T |
| MOQ | 1 tons |
| Delivery Time | 10-30 days |
| Trade Item | FOB CIF CFR PPU PPD |
Core Characteristics and Comparison by Grade
1. A333 GR6
Chemical composition:
Low carbon (C) ≤ 0.30%, manganese (Mn) ≤ 1.06%, strict control of sulphur (S), phosphorus (P) (S), phosphorus (P) content (all ≤ 0.025%) to enhance low temperature toughness.
Nickel-free (Ni) design, relying on aluminium deoxidation fine grain structure to optimize low temperature performance.
Mechanical properties:
Tensile strength ≥415 MPa, yield strength ≥240 MPa, elongation ≥24%.
Applicable temperature: -45 ℃ ~ -195 ℃ (such as liquefied natural gas, ethylene transport).
2. A333 GR8 (9Ni steel)
Chemical composition:
High nickel (Ni) content (about 9%), significantly improving low-temperature toughness and resistance to brittle fracture.
Low sulphur (S) and phosphorus (P) (≤0.025%) to reduce the influence of impurities on welding performance.
Mechanical properties:
Yield strength ≥585 MPa, tensile strength ≥760 MPa, suitable for -196℃ extreme environment.
Typical use: liquefied natural gas (LNG) tanks, marine dry ice storage equipment.
Applications of A333 GR6 and GR8 Pipe
| Grade | Applicable temperature | Applications |
|---|---|---|
| GR6 | -45℃～-195℃ | LNG pipelines, ethylene production equipment |
| GR8 | Below -196°C | Ultra-low temperature LNG storage tanks, marine dry ice systems |

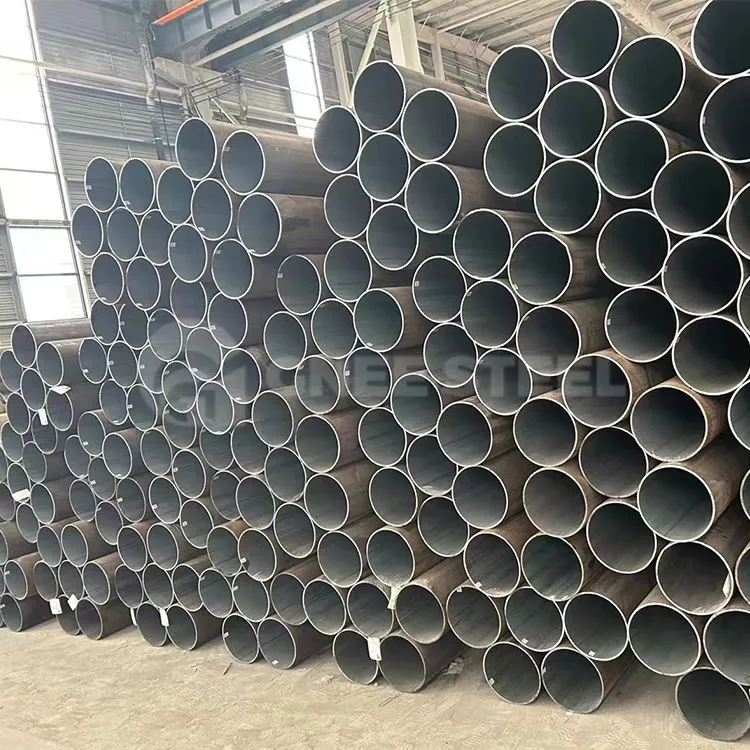

A333 GR6 GR8 LTCS Pipe
